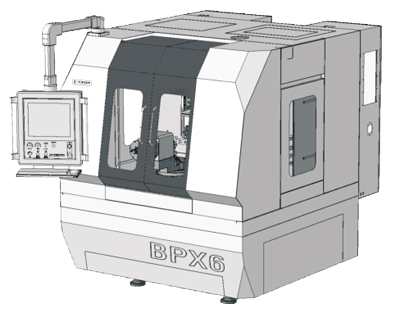

BPX6 Six Axis CNC Grinding Center

BPX6 is made for IT, automotive industry-, aerospace industry-, medical industry-, and other industry used tools. 5 Axis tool grinding center with an additional axis for swiveling the grinding spindle. Machine mainly used for manufacturing of cylindrical or non-cylindrical cutting tools. Diameter range from 0.8mm up to 16/25mm and a maximum tool length of 200mm. The machine can be optionally equipped with a 3 axis automatic loading system, anti-collison system, accurate clamping and high accuracy holder for work piece.

Feature

BPX6 is made for IT, automotive industry-, aerospace industry-, medical industry-, and other industry used tools.
5 Axis tool grinding center with an additional axis for swiveling the grinding spindle. Machine mainly used for manufacturing of cylindrical or non-cylindrical cutting tools. Diameter range from 0.8mm up to 16/25mm and a maximum tool length of 200mm.
The machine can be optionally equipped with a 3 axis automatic loading system, anti-collison system, accurate clamping and high accuracy holder for work piece. BPX6 is one of the most reliable tool grinding machines on the market.

Main Technical Features:

– Granite swivel table for high accuracy and temperature stability.

– Direct Driven C Axis with motor coolant system

– Direct Driven double end motor spindle with plan adaption up to 8 grinding wheels

– 3D Renishaw / Marposs measuring device tool positioning

– Optionally linear motor on axis X and Y and Heidenhain scales in Axis X/Y and Z

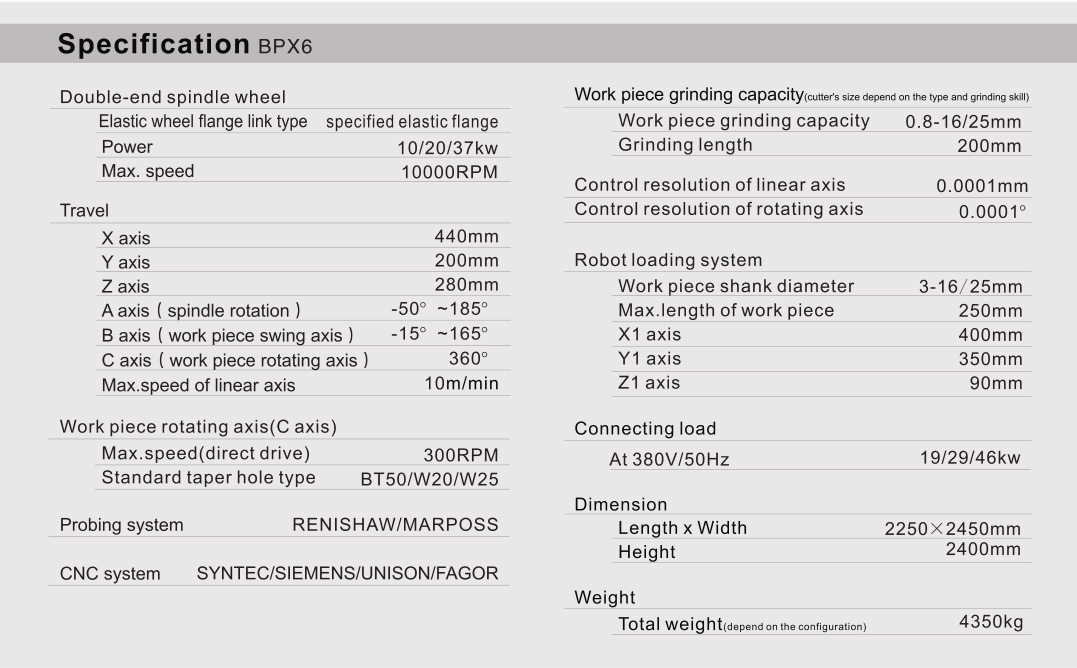

Parameter
